Introduction

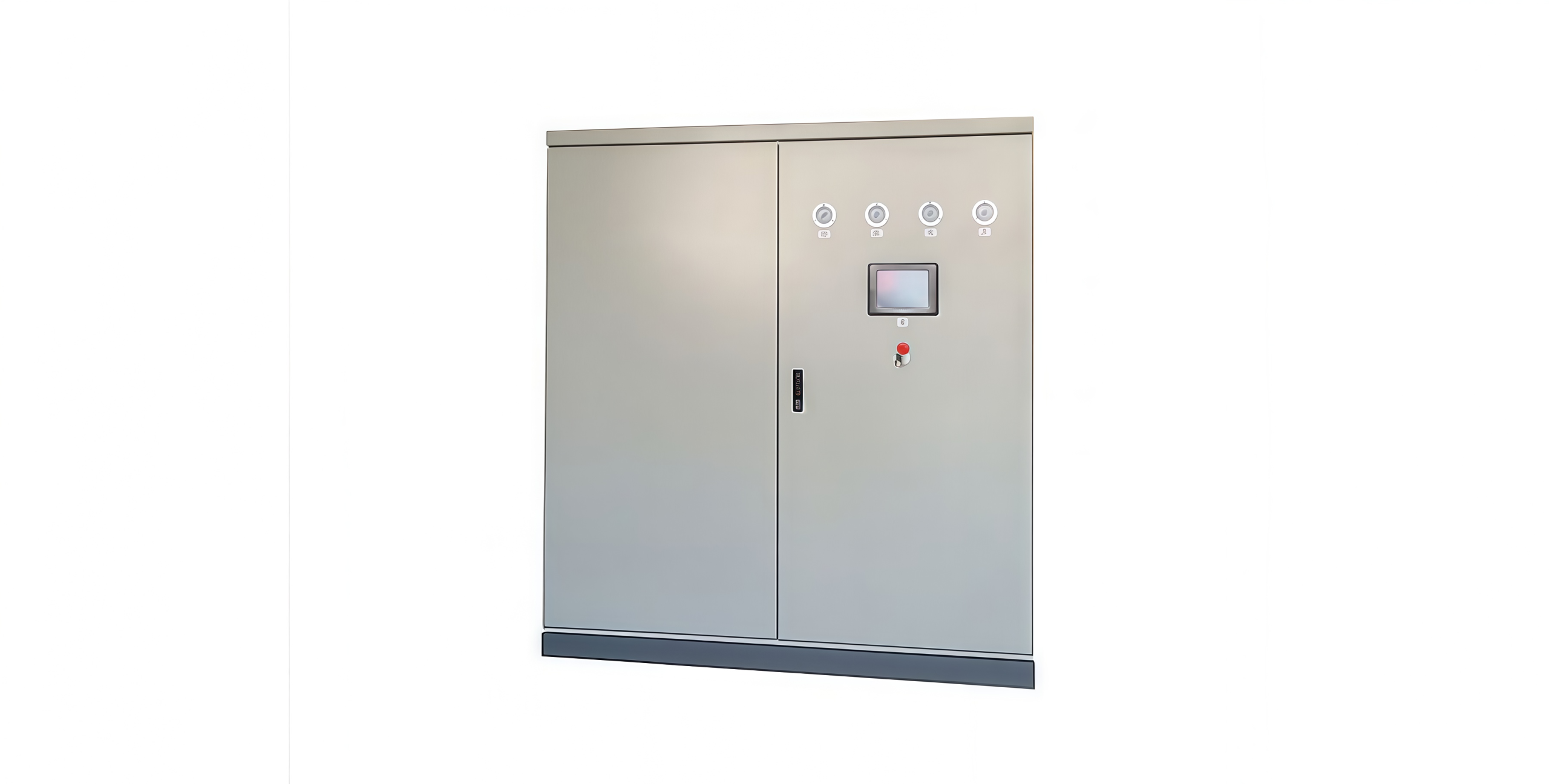

The Box PSA Nitrogen Generator adopt the principle of PSA(pressureswing adsorption) technology. pressure swing adsorption technology utilizes the different adsorption capabilities of adsorbents for raw gas under different pressures, while selectively adsorbing each component of the raw gas under a certain pressure. when pressurized, the adsorption capacity of the adsorbent is enhanced, and a large amount of impurity components in the raw gas are adsorbed. after reaching saturation, the pressure is reduced, and the adsorption capacity of the adsorbent is weakened during decompression, a large amount of these impurities are precipitated to regenerated the adsorbent. on this basis, using a combination of alternating operation can achieve the goal of continuous separation of feed gas.
Main Features
- Easy to install and use with low cost
- Patented filling technology ensures the compactness and compactness of molecular sieves, improving their service life
- High adsorption efficiency, improving product performance and reducing energy comsuption
- Patent modular combination strcture, which can be directly increased or decreased at will, reducing procurement costs.
- RS485 signal communication, strong compatibility and adaptability, can achieve mobile app on/off and real time parameter viewing.
- Online communication adopts TCP+remoteinte rnet communication.
- National standard valves, instruments, etc.
- Standardized production, stable and reliable quality.
- Multiple units are used in parallel, easily achieving N+1 back up.
Specifications
| Nitrogen Capacity | 100-100Nm³/h |
| Nitrogen Purity | 95%-99.999% |
| Nitrogen Pressure | 0.5-0.8Mpa(Boost for high pressure) |
| Nitrogen Dew Point | ≤-40℃（can be adjusted) |
| Control Power Supply | 0.2kw 220V 50Hz |
